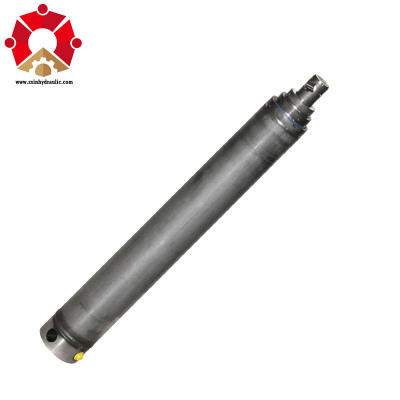

Agricultural Trailer 2 and 3 Stage Tipping Rams
Detail Information
2 and 3 Stages Agricultural Tipping Rams
Product Description
Feature:
Single-acting
Typically pin mounted
Provision for grease nipples at both ends
Headed gland nuts for reducing servicing downtime
Zinc plated glands nuts for added corrosion resistance
Double lipped asymmetric piston seal design manufactured in high-performance polyurethane
Heavy-duty wiper ring featuring a front flap that covers the gland face preventing a water/slurry trap so common with conventional wiper
Piston bearing rings: all pistons fitted with two bearings to give maximum internal support, manufactured to very tight tolerances and made from woven fabric reinforced with a polyester resin
Gland bearing rings: all gland nuts fitted with 30/40mm long hard-wearing Acetal bearing strip.Detailed Pictures
| Stage | Part No | Stage Tonnage’s | Close | Stroke | E | D | Rod | H/S | T |
| 2 Stage | 60-2-700 | 4/2 | 533 | 700 | 20.25 | 70 | 32 | 38 | 3/8 BSP |
| 60-2-953 | 4/2 | 660 | 953 | 20.25 | 70 | 32 | 38 | 3/8 BSP | |
| 60-2-1107 | 4/2 | 737 | 1107 | 20.25 | 70 | 32 | 38 | 3/8 BSP | |
| 75-2-1070 | 7/4 | 735 | 1070 | 25.8 | 90 | 45 | 45 | 1/2 BSP | |
| 75-2-1384 | 7/4 | 914 | 1384 | 25.8 | 90 | 45 | 67 | 1/2 BSP | |
| 75-2-1372 | 7/4 | 920 | 1372 | 25.8 | 90 | 45 | 79 | 1/2 BSP | |
| 75-2-830 | 7/4 | 610 | 830 | 25.8 | 90 | 45 | 40 | 1/2 BSP | |
| 75-2-953 | 7/4 | 660 | 953 | 25.8 | 90 | 45 | 28.5 | 1/2 BSP | |
| 75-2-700 | 7/4 | 555 | 700 | 25.8 | 90 | 45 | 50 | 1/2 BSP | |
| 75-2-2434 | 7/4 | 1422 | 2434 | 25.8 | 90 | 45 | 50 | 1/2 BSP | |
| 75-2-1258 | 7/4 | 812.5 | 1258 | 25.8 | 90 | 45 | 28.5 | 1/2 BSP | |
| 75-2-600 | 7/4 | 500 | 600 | 25.8 | 90 | 45 | 45 | 1/2 BSP | |
| 95-2-1375 | 10/5 | 876 | 1375 | 25.8 | 105 | 45 | 45 | 1/2 BSP | |
| 95-2-969 | 10/5 | 673 | 969 | 25.8 | 105 | 45 | 45 | 1/2 BSP | |
| 95-2-1384 | 10/5 | 914 | 1384 | 25.8 | 105 | 45 | 78.5 | 1/2 BSP | |
| 95-2-1753 | 10/5 | 1067 | 1753 | 25.8 | 105 | 45 | 47 | 1/2 BSP | |
| 95-2-1587 | 10/5 | 978 | 1587 | 25.8 | 105 | 45 | 41 | 1/2 BSP | |
| 95-2-1746 | 10/5 | 1102 | 1746 | 25.8 | 105 | 45 | 85.5 | 1/2 BSP | |
| 95-2-1321 | 10/5 | 876 | 1321 | 25.8 | 105 | 45 | 72 | 1/2 BSP | |
| 95-2-1035 | 10/5 | 711 | 1035 | 25.8 | 105 | 45 | 50 | 1/2 BSP | |
| 95-2-1867 | 10/5 | 1156 | 1867 | 25.8 | 105 | 45 | 79 | 1/2 BSP | |
| 95-2-729 | 10/5 | 553 | 729 | 25.8 | 105 | 45 | 45 | 1/2 BSP | |
| 95-2-820 | 10/5 | 610 | 820 | 25.8 | 105 | 45 | 56.5 | 1/2 BSP | |
| 110-2-2141 | 12/8 | 1280 | 2141 | 32.5 | 120 | 50 | 47 | 1/2 BSP | |
| 110-2-1727 | 12/8 | 1067 | 1727 | 32.5 | 120 | 50 | 41 | 1/2 BSP | |
| 110-2-1403 | 12/8 | 914 | 1403 | 32.5 | 120 | 50 | 50 | 1/2 BSP | |
| 110-2-1075 | 12/8 | 775 | 1075 | 32.5 | 120 | 50 | 75 | 1/2 BSP | |
| 110-2-997 | 12/8 | 711 | 997 | 32.5 | 120 | 50 | 50 | 1/2 BSP | |
| 110-2-1607 | 12/8 | 1016 | 1607 | 32.5 | 120 | 50 | 50 | 1/2 BSP | |
| 3 Stage | 95-3-1993 | 10/7/4 | 924 | 1993 | 25.8 | 105 | 45 | 72 | 1/2 BSP |
| 95-3-1894 | 10/7/4 | 876 | 1894 | 25.8 | 105 | 45 | 57 | 1/2 BSP | |
| 95-3-2299 | 10/7/4 | 1026 | 2299 | 25.8 | 105 | 45 | 57 | 1/2 BSP | |
| 95-3-1420 | 10/7/4 | 711 | 1420 | 25.8 | 105 | 45 | 50 | 1/2 BSP | |
| 95-3-1566 | 10/7/4 | 759 | 1566 | 25.8 | 105 | 45 | 49.5 | 1/2 BSP | |
| 95-3-2023 | 10/7/4 | 1067 | 2023 | 25.8 | 105 | 45 | 60 | 1/2 BSP | |
| 95-3-1726 | 10/7/4 | 813 | 1726 | 25.8 | 105 | 45 | 50 | 1/2 BSP | |
| 95-3-2563 | 10/7/4 | 1092 | 2563 | 25.8 | 105 | 45 | 50 | 1/2 BSP | |
| 110-3-2821 | 12/8/5 | 1245 | 2821 | 32.5 | 120 | 50 | 109 | 1/2 BSP | |
| 110-3-2032 | 12/8/5 | 914 | 2032 | 32.5 | 120 | 50 | 41 | 1/2 BSP | |
| 110-3-2449 | 12/8/5 | 1092 | 2449 | 32.5 | 120 | 50 | 80 | 1/2 BSP | |
| 110-3-2323 | 12/8/5 | 1016 | 2323 | 32.5 | 120 | 50 | 46 | 1/2 BSP | |
| 110-3-2992 | 12/8/5 | 1245 | 2992 | 32.5 | 120 | 50 | 52 | 1/2 BSP |
