Tie Rod Hydraulic Cylinder
| Categories | Tie Rod Hydraulic Cylinder |
|---|---|
| Brand | Zhongxin+Hydraulic Cylinders+Manufacturer |
| FOB port | Qingdao |
| Terms of Payment | T/T, 30% deposit for production |
| Update Time | Nov 21,2024 |
Detail Information
HYDRAULIC TIE-ROD CYLINDERS - 2500 PSI TR
2500PSI TIE-ROD DOUBLE ACTING CYLINDER WITH
ROD: Steel 1045, rod with 28-32 HRC hardness, 0.001"chrome thickness. ASTM B117-18 salt spray testing up to 96 hours.
TUBE: Precision honed steel for extended seal life.
GLAND: Ductile Iron, drilled oil passages.
PISTON: Ductile Iron, for increased durability.
END MOUNTS: Ductile Iron female clevis with pins and clips. With 2 ORB ports at 90°to each other for flexibility of assembly.
PIN: Steel, zinc plated. PORTS: Standard NPT (SAE Available upon request).
ROD CLEVIS: Ductile Iron, thread female clevis
with pins and clips included. Adjustable with locking bolt.
SEALS: Top quality, Hallite Brand Seals.
PAINT: High quality paint for corrosion resistance up to 360 hours. Standard color is Black. Custom colors are available.

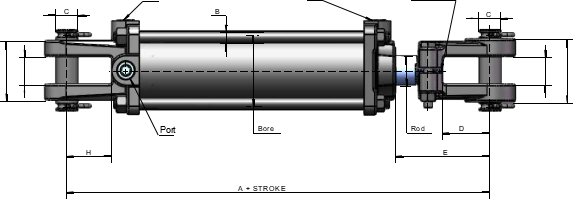

| BORE | ROD THREAD | PORTS | A | B | C | D | E | F | G | H | I |
| 2.00" | 1 1/8-12 UNF | 3/8 NPT | 10.25" | M10 | 1.0" | 2.125" | 3.502" | 2.50" | 1.165” | 2.008" | 2.504" |
| 2.50" | 1 1/8-12 UNF | 3/8 NPT | 10.25" | M10 | 1.0" | 2.125" | 3.502" | 2.50" | 1.165" | 2.008" | 2.504" |
| 3.00" | 1 1/4-12 UNF | 1/2 NPT | 10.25" | M12 | 1.0" | 2.125" | 3.502" | 2.56" | 1.165" | 2.008" | 2.717" |
| 3.50" | 1 1/4-12 UNF | 1/2 NPT | 10.25" | M14 | 1.0" | 2.125" | 3.502" | 2.56" | 1.165" | 2.008" | 2.717" |
| 4.00" | 1 1/4-12 UNF | 1/2 NPT | 10.25" | M16 | 1.0" | 2.125" | 3.502" | 2.76" | 1.165" | 2.008" | 2.717" |
| PART NUMBER | BORE & STROKE | DIMENSIONS | ROD DIAMETER | PIN SIZE | PORTS | COLUMN LOADS (LBS) | WEIGHT (LBS) | |
| RETRACTED | EXTENDED | |||||||
| TR2.5-2004-ZX | 2"×4" | 14 1/4" | 18 1/4" | 1 1/8" | 1“ | 3/8NPT | 7850 | 16 |
| TR2.5-2006-ZX | 2"×6" | 16 1/4" | 22 1/4" | 7850 | 17 | |||
| TR2.5-2008-ZX | 2"×8" | 18 1/4" | 26 1/4" | 7850 | 19 | |||
| TR2.5-2008-ASAE-ZX | 2"×8" | 20 1/4" | 28 1/4" | 7850 | 20 | |||
| TR2.5-2010-ZX | 2"×10" | 20 1/4" | 30 1/4" | 7850 | 20 | |||
| TR2.5-2012-ZX | 2"×12" | 22 1/4" | 34 1/4" | 7850 | 22 | |||
| TR2.5-2014-ZX | 2"×14" | 24 1/4" | 38 1/4" | 7850 | 24 | |||
| TR2.5-2016-ZX | 2"×16" | 26 1/4" | 42 1/4" | 7850 | 25 | |||
| TR2.5-2018-ZX | 2"×18" | 28 1/4" | 46 1/4" | 7850 | 27 | |||
| TR2.5-2020-ZX | 2"×20" | 30 1/4" | 50 1/4" | 6950 | 28 | |||
| TR2.5-2024-ZX | 2"×24" | 34 1/4" | 58 1/4" | 5180 | 31 | |||
| TR2.5-2030-ZX | 2"×30" | 40 1/4" | 70 1/4" | 3570 | 36 | |||
| TR2.5-2036-ZX | 2"×36" | 46 1/4" | 82 1/4" | 2610 | 41 | |||
| TR2.5-2040-ZX | 2"×40" | 50 1/4" | 90 1/4" | 1700 | 44 | |||
| TR2.5-2048-ZX | 2"×48" | 58 1/4" | 106 1/4" | 1570 | 49 | |||
| TR2.5-2504-ZX | 2.5"×4" | 14 1/4" | 18 1/4" | 1 1/8" | 1" | 3/8 NPT | 12200 | 19 |
| TR2.5-2506-ZX | 2.5"×6" | 16 1/4" | 22 1/4" | 12200 | 21 | |||
| TR2.5-2508-ZX | 2.5"×8" | 18 1/4" | 26 1/4" | 12200 | 22 | |||
| TR2.5-2508-ASAE-ZX | 2.5"×8" | 20 1/4" | 28 1/4" | 12200 | 23 | |||
| TR2.5-2510-ZX | 2.5"×10" | 20 1/4" | 30 1/4" | 12200 | 24 | |||
| TR2.5-2512-ZX | 2.5"×12" | 22 1/4" | 34 1/4" | 12200 | 26 | |||
| TR2.5-2514-ZX | 2.5"×14" | 24 1/4" | 38 1/4" | 10300 | 28 | |||
| TR2.5-2516-ZX | 2.5"×16" | 26 1/4" | 42 1/4" | 8400 | 29 | |||
| TR2.5-2518-ZX | 2.5"×18" | 28 1/4" | 46 1/4" | 7000 | 32 | |||
| TR2.5-2520-ZX | 2.5"×20" | 30 1/4" | 50 1/4" | 5900 | 34 | |||
| TR2.5-2524-ZX | 2.5"×24" | 34 1/4" | 58 1/4" | 4400 | 38 | |||
| TR2.5-2530-ZX | 2.5"×30" | 40 1/4" | 70 1/4" | 1 1/4" | 4400 | 43 | ||
| TR2.5-2536-ZX | 2.5"×36" | 46 1/4" | 82 1/4" | 3400 | 49 | |||
| TR2.5-2540-ZX | 2.5"×40" | 50 1/4" | 90 1/4" | 2700 | 54 | |||
| TR2.5-2548-ZX | 2.5"×48" | 58 1/4" | 106 1/4" | 2000 | 60 | |||
| TR2.5-3004-ZX | 3"×4" | 14 1/4" | 18 1/4" | 1 1/4" | 1" | 1/2 NPT | 17600 | 24 |
| TR2.5-3006-ZX | 3"×6" | 16 1/4" | 22 1/4" | 17600 | 26 | |||
| TR2.5-3008-ZX | 3"×8" | 18 1/4" | 26 1/4" | 17600 | 28 | |||
| TR2.5-3008-ASAE-ZX | 3"×8" | 20 1/4" | 28 1/4" | 17600 | 29 | |||
| TR2.5-3010-ZX | 3"×10" | 20 1/4" | 30 1/4" | 17600 | 30 | |||
| TR2.5-3012-ZX | 3"×12" | 22 1/4" | 34 1/4" | 17600 | 33 | |||
| TR2.5-3014-ZX | 3"×14" | 24 1/4" | 38 1/4" | 15700 | 35 | |||
| TR2.5-3016-ZX | 3"×16" | 26 1/4" | 42 1/4" | 12800 | 37 | |||
| TR2.5-3016-ASAE-ZX | 3"×16" | 31 1/2" | 47 1/2" | 1 1/4" | 9200 | 42 | ||
| TR2.5-3018-ZX | 3"×18" | 28 1/4" | 46 1/4" | 1 1/4" | 1" | 1/2 NPT | 11300 | 42 |
| TR2.5-3020-ZX | 3"×20" | 30 1/4" | 50 1/4" | 9200 | 44 | |||
| TR2.5-3024-ZX | 3"×24" | 34 1/4" | 58 1/4" | 6700 | 49 | |||
| TR2.5-3030-ZX | 3"×30" | 40 1/4" | 70 1/4" | 1 1/2" | 9600 | 57 | ||
| TR2.5-3036-ZX | 3"×36" | 46 1/4" | 82 1/4" | 7000 | 65 | |||
| TR2.5-3040-ZX | 3"×40" | 50 1/4" | 90 1/4" | 5700 | 70 | |||
| TR2.5-3048-ZX | 3"×48" | 58 1/4" | 106 1/4" | 3900 | 80 | |||
| TR2.5-3504-ZX | 3.5"×4" | 14 1/4" | 18 1/4" | 1 1/4" | 1" | 1/2 NPT | 24000 | 29 |
| TR2.5-3506-ZX | 3.5"×6" | 16 1/4" | 22 1/4" | 24000 | 32 | |||
| TR2.5-3508-ZX | 3.5"×8" | 18 1/4" | 26 1/4" | 24000 | 34 | |||
| TR2.5-3508-ASAE-ZX | 3.5"×8" | 20 1/4" | 28 1/4" | 24000 | 35 | |||
| TR2.5-3510-ZX | 3.5"×10" | 20 1/4" | 30 1/4" | 24000 | 37 | |||
| TR2.5-3512-ZX | 3.5"×12" | 22 1/4" | 34 1/4" | 19600 | 39 | |||
| TR2.5-3514-ZX | 3.5"×14" | 24 1/4" | 38 1/4" | 15700 | 42 | |||
| TR2.5-3516-ZX | 3.5"×16" | 26 1/4" | 42 1/4" | 12800 | 44 | |||
| TR2.5-3516-ASAE-ZX | 3.5"×16" | 31 1/2" | 47 1/2" | 1 1/2" | 1 1/4" | 21100 | 50 | |
| TR2.5-3518-ZX | 3.5"×18" | 28 1/4" | 46 1/4" | 1 1/4" | 1" | 10700 | 47 | |
| TR2.5-3520-ZX | 3.5"×20" | 30 1/4" | 50 1/4" | 9100 | 49 | |||
| TR2.5-3524-ZX | 3.5"×24" | 34 1/4" | 58 1/4" | 1 1/2" | 14000 | 58 | ||
| TR2.5-3530-ZX | 3.5"×30" | 40 1/4" | 70 1/4" | 9600 | 66 | |||
| TR2.5-3536-ZX | 3.5"×36" | 46 1/4" | 82 1/4" | 7000 | 74 | |||
| TR2.5-3540-ZX | 3.5"×40" | 50 1/4" | 90 1/4" | 5800 | 80 | |||
| TR2.5-3548-ZX | 3.5"×48" | 58 1/4" | 106 1/4" | 3900 | 91 | |||
| TR2.5-4004-ZX | 4"×4" | 14 1/4" | 18 1/4" | 1 1/2" | 1" | 1/2 NPT | 31400 | 33 |
| TR2.5-4006-ZX | 4"×6" | 16 1/4" | 22 1/4" | 31400 | 36 | |||
| TR2.5-4008-ZX | 4"×8" | 18 1/4" | 26 1/4" | 31400 | 38 | |||
| TR2.5-4008-ASAE-ZX | 4"×8" | 20 1/4" | 28 1/4" | 31400 | 39 | |||
| TR2.5-4010-ZX | 4"×10" | 20 1/4" | 30 1/4" | 31400 | 41 | |||
| TR2.5-4012-ZX | 4"×12" | 22 1/4" | 34 1/4" | 31400 | 44 | |||
| TR2.5-4014-ZX | 4"×14" | 24 1/4" | 38 1/4" | 31400 | 46 | |||
| TR2.5-4016-ZX | 4"×16" | 26 1/4" | 42 1/4" | 26700 | 49 | |||
| TR2.5-4016-ASAE-ZX | 4"×16" | 31 1/2" | 47 1/2" | 2" | 1 1/4" | 31400 | 63 | |
| TR2.5-4018-ZX | 4"×18" | 28 1/4" | 46 1/4" | 1 1/2" | 1" | 22300 | 55 | |
| TR2.5-4020-ZX | 4"×20" | 30 1/4" | 50 1/4" | 18800 | 58 | |||
| TR2.5-4024-ZX | 4"×24" | 34 1/4" | 58 1/4" | 14000 | 64 | |||
| TR2.5-4024-175-ZX | 4"×24" | 34 1/4" | 58 1/4" | 1 3/4" | 26000 | 68 | ||
| TR2.5-4024-200-ZX | 4"×24" | 34 1/4" | 58 1/4" | 2" | 31400 | 73 | ||
| TR2.5-4030-ZX | 4"×30" | 40 1/4" | 70 1/4" | 30500 | 84 | |||
| TR2.5-4036-ZX | 4"×36" | 46 1/4" | 82 1/4" | 22200 | 95 | |||
| TR2.5-4040-ZX | 4"×40" | 50 1/4" | 90 1/4" | 18200 | 103 | |||
| TR2.5-4048-ZX | 4"×48" | 58 1/4" | 106 1/4" | 13200 | 118 |
