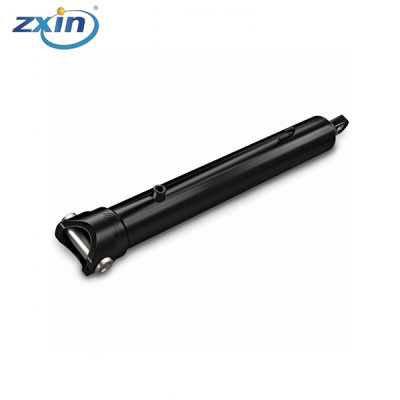

FEE197-5-5550 Hyva Replacement Dump Hoist Cylinders

Categories	FEE Type Telescopic Cylinders
Brand	Zhongxin+Hydraulic Cylinders+Manufacturer
Model	FEE A9-5-299-K83-1HC;FEE 169-4-4505;FEE197-5-5550
Function	Dump Hoist / Body Raise / Tipping
Type	Dump
Features	Single-Acting Telescopic Hydraulic Cylinder (SAT)
Weight	840lbs
FOB port	QINGDAO
Terms of Payment	T/T, 30% deposit,the balance paid before delivery
Download
Update Time	Nov 21,2024

Contact Now

Favorites

Detail Information

Front End Cylinder With Pin to Pin Eye

Our pin type FEE cylinders are characterized by the pin type connection. This fitting method offers easy installation and side load resistance at an increased working pressure of 250 bars. The standard range consists of cylinders with a first stage diameter from 110 to 226 and a stroke ranging from 2785 to 9030.

Product Feature

1. To guarantee stable and reliable quality by advanced machining technology and Reasonable design scheme.

2. the material with better mechanical property to guarantee stronger lifting capacity.

3. Ensure the best product performance by world famous seal kits.

4. Highly improved anti-corrosion and wear resisting property with high-end chrome plating production line.

5.Stroke 900mm-12000mm, up to 8 stages.

6.1. working pressure up to 3500psi.

7. lifting capacity can be 120ton by reasonable lifting way

8. lifting capacity can be about 300 ton for special mine Hydraulic cylinders.

9.All stage Diameter:

214/191/169/149/129/110/91/72/(53)

(226)/202/179/157/137/118/99/80/63

221/196/172/150/129/110/91/72/（53）

206/182/160/140/120/100/80/63/（46）

FEE series - front end cylinder with pin to pin
Type	LBS	K* (”)	Total Gal.	O (”)	B (”)	C (”)	L1 (”)	L2 (”)	Z (”)	M* (”)	S (”)	T (”)	N (”)	Y (”)	R (”)	Last stage (”)	Stroke (”)	Max PSI
FEE A5-3-83-K42	163	42.31	4.2	6.63	5.69	5.13	13	-	1.63	4	2.19	1	2.13	2	2.06	2.83	83.2	3626
FEE A6-3-83-K42	196	42.31	5.8	7	6.56	1.63	13	-	1.63	4	2.19	1	2.13	2	2.06	3.58	83.2	3626
FEE A6-3-96-K51	236	51.19	7.1	7	6.56	5.88	13	17.69	1.63	4	2.19	1	2.06	2	2.06	3.58	96	3626
FEE A6-3-101-K48	223	48.25	7.1	7	6.56	5.88	13	17.69	1.63	4	2.19	1	2.06	2	2.06	3.58	100.9	3626
FEE A6-3-110-K51	236	51.19	7.7	7	6.56	5.88	13	17.69	1.63	4	2.19	1	2.13	2	2.06	3.58	109.6	3626
FEE A6-3-119-K54	249	54.13	8.5	7	6.56	5.88	13	17.69	1.63	4	2.19	1	2.06	2	2.06	3.58	118.6	3626
FEE A6-3-124-K57-HD	262	57.06	9.0	7	6.56	5.88	13	17.69	1.63	4	2.19	1	2.13	2	2.06	3.58	123.6	3626
FEE A6-3-134-K60-HD	278	60.44	9.5	7	6.56	5.88	13	17.69	1.63	4	2.19	1	2.13	2	2.06	3.58	133.7	3626
FEE A6-4-158-K54	278	54.13	9.8	7	6.56	5.88	13	17.69	1.63	4	2.19	1	2.06	2	2.06	2.83	158.4	3626
FEE A7-3-110-K51	282	51.19	10.6	8.25	7.38	6.69	13	17.69	1.63	4	2.19	1	2.13	2	2.06	4.33	109.6	3626
FEE A7-3-119-K53-SKE	300	53.13	11.4	8.25	7.38	6.69	13	17.69	1.63	3	2.19	1	2.06	2	1.77	4.33	118.6	3626
FEE A7-3-127-K56-SKE	315	56.13	12.4	8.25	7.38	6.69	13	17.69	1.63	3	2.19	1	2.06	2	1.77	4.33	127.3	3626
FEE A7-3-137-K60	333	60.44	13.2	8.25	7.38	6.69	13	17.69	1.63	4	2.19	1	2.06	2	2.06	4.33	137.5	3626
FEE A7-3-147-K64	351	63.56	14.3	8.25	7.38	6.69	13	17.69	1.63	4	2.19	1	2.06	2	2.06	4.33	146.8	3626
FEE A7-4-135-K48	298	48.25	11.4	8.25	7.38	6.69	13	17.69	1.63	4	2.19	1	2.13	2	2.06	3.58	134.8	3626
FEE A7-4-146-K51	315	51.19	12.4	8.25	7.38	6.69	13	17.69	1.63	4	2.19	1	2.06	2	2.06	3.58	146.4	3626
FEE A7-4-158-K54	333	54.13	13.5	8.25	7.38	6.69	13	17.69	1.63	4	2.19	1	2.13	2	2.06	3.58	158.4	3626
FEE A7-4-170-K57	353	57.06	14.3	8.25	7.38	6.69	13	17.69	1.63	4	2.19	1	2.06	2	2.06	3.58	170	3626
FEE A7-4-183-K60	373	60.44	15.6	8.25	7.38	6.69	13	17.69	1.63	4	2.19	1	2.06	2	2.06	3.58	183.6	3626
FEE A8-4-146-K51	379	51.31	16.6	9.44	8.25	7.56	11.69	17.69	1.63	4	2.19	1	2.06	2	2.06	4.33	146.4	3626
FEE A8-4-158-K54	401	54.31	18.0	9.44	8.25	7.56	6.69	17.69	1.63	4	2.19	1	2.06	2	2.06	4.33	158.4	3626
FEE A8-4-170-K57	423	57.25	19.3	9.44	8.25	7.56	6.69	17.69	1.63	4	2.19	1	2.06	2	2.06	4.33	170	3626
FEE A8-4-183-K61	448	60.56	20.6	9.44	8.25	7.56	6.69	17.69	1.63	4	2.19	1	2.06	2	2.06	4.33	183.6	3626
FEE A8-5-169-K50	465	50.25	22.2	9.44	9.25	8.44	6.69	17.69	1.63	5.38	2.38	1	2.06	2	2.06	4.33	168.7	3626
FEE A8-5-190-K55	522	54.81	25.4	9.44	9.25	8.44	6.69	17.69	1.63	4	2.38	1	2.13	2	2.06	4.33	190.3	3626
FEE A8-5-213-K58	551	57.75	28.0	9.44	9.25	8.44	6.69	17.69	1.63	4	2.38	1	2.06	2	2.06	4.33	212.7	3626
FEE A8-5-222-K60	567	59.50	29.1	9.44	9.25	8.44	6.69	17.69	1.63	4	2.38	1	2.06	2	2.06	4.33	221.7	3626
FEE A8-5-230-K61	582	61.13	30.1	9.44	9.25	8.44	6.69	17.69	1.63	4	2.38	1	2.06	2	2.06	4.33	229.7	3626
FEE A8-5-245-K64	613	64.25	32.2	9.44	9.25	8.44	6.69	17.69	1.63	4	2.38	1	2.06	2	2.06	4.33	245.2	3191
FEE A8-5-255-K67	639	67	33.5	9.44	9.25	8.44	6.69	17.69	1.63	4	2.38	1	2.06	2	2.06	4.33	255.2	2756
FEE A8-5-255-K68-LKE	642	68.13	33.5	9.44	9.25	8.44	6.69	17.69	1.63	5.06	2.38	1	2.06	2	2.06	4.33	255.5	2756
FEE A8-5-269-K70	666	69.75	35.4	9.44	9.25	8.44	6.69	17.69	1.63	4	2.38	1	2.06	2	2.06	4.33	268.7	2756
FEE A8-5-269-K71-LKE	668	70.88	35.4	9.44	9.25	8.44	6.69	17.69	1.63	5.06	2.38	1	2.06	2	2.06	4.33	268.7	2756
FEE A8-5-279-K78-LK	694	77.63	36.7	9.44	9.25	8.44	6.69	17.69	1.63	9.50	2.38	1	2.06	2	2.06	4.33	279.1	2466
FEE A8-5-281-K72	690	72.13	36.7	9.44	9.25	8.44	6.69	17.69	1.63	4	2.38	1	2.06	2	2.06	4.33	280.7	2466
FEE A9-5-230-K61	697	61.13	38.6	10.63	10.19	9.44	6.69	17.69	2.06	4	2.50	1	2.06	2	2.44	5.08	229.7	3191
FEE A9-5-245-K64	734	64.25	41.2	10.63	10.19	9.44	6.69	17.69	2.06	4	2.50	1	2.06	2	2.44	5.08	245.2	3191
FEE A9-5-255-K67	765	67	43.1	10.63	10.19	9.44	6.69	17.69	2.06	4	2.50	1	2.06	2	2.44	5.08	255.2	3191
FEE A9-5-269-K70	796	69.75	45.2	10.63	10.19	9.44	6.69	17.69	2.06	4	2.50	1	2.06	2	2.44	5.08	268.7	3191
FEE A9-5-269-K76-LK	802	75.69	45.2	10.63	10.19	9.44	6.69	17.69	2.06	4	2.50	1	2.06	2	2.44	5.08	268.7	2756
FEE A9-5-279-K78-LK	829	77.63	47.0	10.63	10.19	9.44	6.69	17.69	2.06	9.50	2.50	1	2.06	2	2.44	5.08	279.1	2756
FEE A9-5-281-K72	825	72.13	47.3	10.63	10.19	9.44	6.69	17.69	2.06	4	2.50	1	2.06	2	2.44	5.08	280.7	2756
FEE A9-5-299-K83-LK	893	82.75	50.5	10.63	10.19	9.44	6.69	17.69	2.06	9.13	2.50	1	2.06	2	2.44	5.08	299.1	2466
FEE A9-5-300-K78	886	77.63	50.5	10.63	10.19	9.44	6.69	17.69	2.06	4	2.50	1	2.06	2	2.44	5.08	300.2	2466
FEE A9-5-320-K82	933	81.56	53.9	10.63	10.19	9.44	6.69	17.69	2.06	4	2.50	1	2.06	2	2.44	5.08	320.2	2176
FEE A9-5-336-K86	981	85.88	56.5	10.63	10.19	9.44	6.69	17.69	2.06	4	2.50	1	2.06	2	2.44	5.08	335.7	1958
FEE A9-5-336-K87-LK	983	87.06	56.5	10.63	10.19	9.44	6.69	17.69	2.06	4	2.50	1	2.06	2	2.44	5.08	335.7	1958
*Includes 0.79" of pullout (min -0.2”,max +1.18”)								**All cylinders available in full hard chrome upon request.
